Membrane product range
Rosahl membranes
Four ranges are available depending on the type of installation and size of enclosure. They are:
1. PD4/5 Series for dehumidifying enclosures up to 1 litre
Types PD4 and PD5 are a screw-in membrane dehumidifiers suitable for dehumidifying enclosures up to 1 litre. The PD4 has soldered connectors and PD5 has push connectors. Both models use a fine pitch M12 fixing (M12 x P0.5). The flange diameter is 17mm and length 11mm and no gasket is supplied. A 3V dc power supply is required. Optional locking rings are available if required.
See table below for specification and performance.
PD2/3 Series for dehumidifying enclosures up to 2 litres
iTypes PD2 and PD3 are a screw-in membrane dehumidifiers suitable for dehumidifying enclosures up to 2 litres. The PD2 has soldered connectors and PD3 has push connectors. Both models use a fine pitch M12 fixing (M12 x P0.5). The flange diameter is 17mm and length 11mm and no gasket is supplied. A 3V dc power supply is required. Optional locking rings are available of required.
See table below for specification and performance.
2. RD Series for dehumidifying enclosures up to 2 litres
Type RD is a flat membrane dehumidifier also for enclosures up to two litres and measures 24 x 30 x 5.5mm. The standard version is model RD3 which is designed to be mounted on the outside of the enclosure. Model RD4 is almost identical but designed to be installed inside the enclosure to be dehumidified: a gasket is supplied. A 3V dc power supply is required.
See table below for specification and performance.
3. RS Series for dehumidifying enclosures up to 5 litres
The type RS is a flat membrane dehumidifier for enclosures up to five litres and measures 21 x 28 x 13.5mm. The RS1 uses soldered terminals and the RS2 uses push connectors. They both mount on the the outside of the enclosure. Model RS1 and RS2 have the same dimensions and only differ in the electrical connections . They need a 3V DC power supply.
See table below for specification and performance.
3. Type MDL for dehumidifying enclosures from 0.5 to 2m³
The MDL Series is a thin flat membrane dehumidifier 2.3mm deep and available in three models according to enclosure size. Volumes over 2m³ can be controlled using two or more membranes. A 3V dc current limiting power supply is required. MDL models are normally installed inside the enclosure.
See table below for specification and performance.

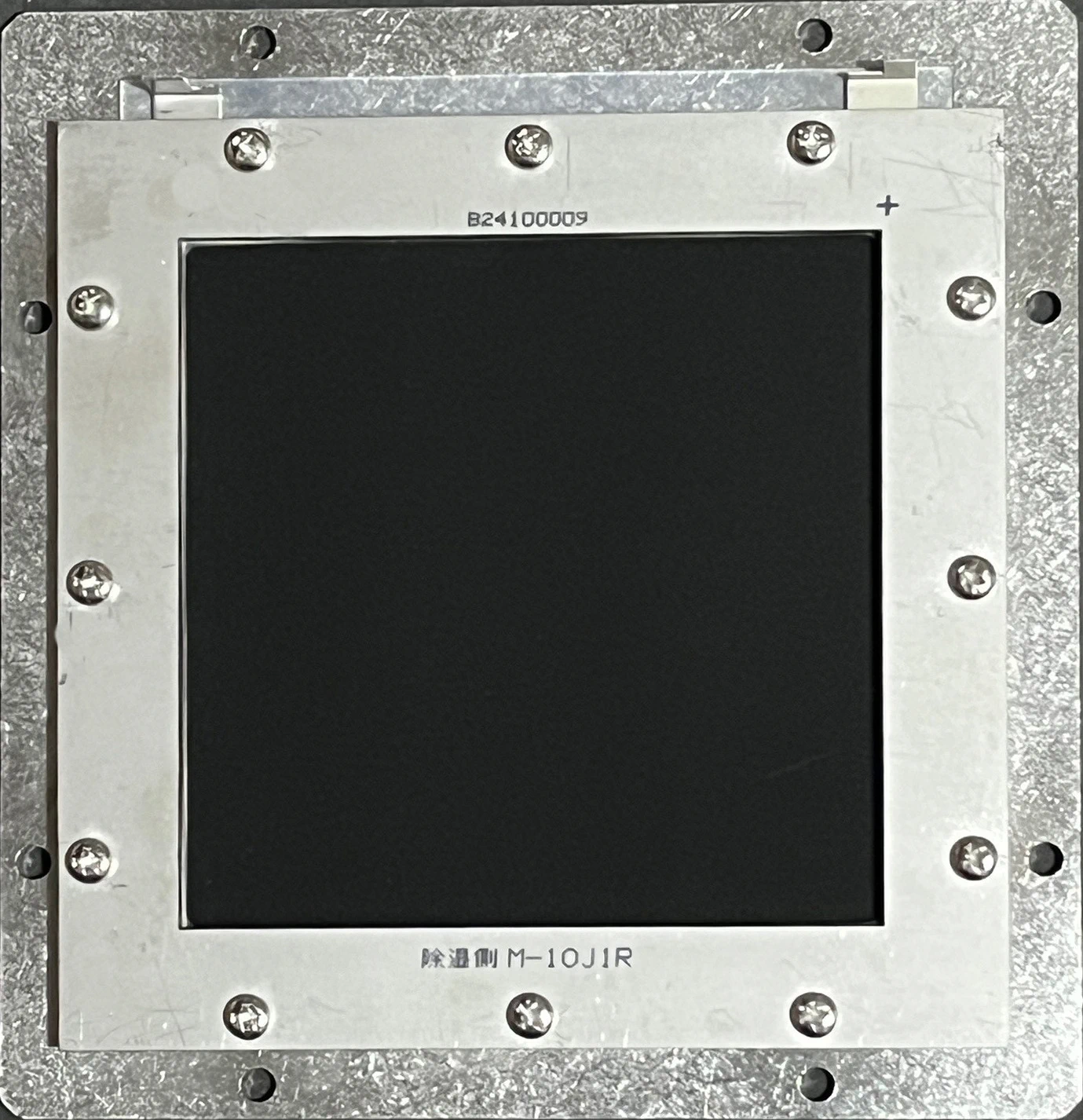

4. New M Series for dehumidifying enclosures from 0.25 to 4m³
With a wider range of five models and simpler installation, the new M Series membranes are mounted in pre-drilled stainless steel frames and supplied with a pre-formed gasket. As with the existing MDL Series, multiple membranes may be used for larger enclosures. A 3V dc current limiting power supply is required. M Series models are normally installed inside the enclosure.
See table below for specification and performance.
5. Membranes pre-installed in a steel case for ease of mounting
A range of membranes pre-installed in steel enclosures are available for ease of installation. Three models are available and use the M-5J1R, M-7J1R, or the M-10J1R membrane simplified.
These units need an external power supply.
See table below for specification and performance.
| M-Series | M-1J1R | M-2J1R | M-3M1R | M-3J1R | M-5J1R | M-7J1R | M-10J1R |
|---|---|---|---|---|---|---|---|
 |  |  |  |  |  | ||
| Dehumidifying (grams/day)*1 | 1 | 2.0 | 2.9 | 4 | 8 | 16 | 29 |
| Applicable volume m³ *2 | 0.125 m³ | <0.25 m³ | <0.35 m³ | <0.5 m³ | <1 m³ | <2 m³ | <4 m³ |
| Element voltage | 3V DC | ||||||
| Power consumption (W) *3 | 1.0 | 1.5 | 2 | 2 | 3 | 6 | 12 |
| Dimensions (mm) *4 | 52.5 x 50 x 16.5 | 67.5 x 50 x 16.5 | 65 x 62 x 16.5 | 74 x 58 x 16.5 | 89 x 84 x 16.5 | 117 x 105 x 17.5 | 162.5 x 155 x 17.5 |
| Weight (g) | 70 | 85 | 90 | 95 | 150 | 340 | 580 |
| Operating temperature | -10 to +50C | -10 to +50C | -10 to +50C | -10 to +50C | -10 to +50C | -10 to +50C | -10 to +50C |
| Terminals | Push connector | Push connector | Push connector | Push connector | Push connector | Push connector | Push connector |
Enclosed membranes
| S-5T1 | S-7T1 | S-10T1 | |
|---|---|---|---|
| | ||
| Dehumidifying (grams/day) | 8 | 16 | 29 |
| Applicable volume | <1m3 | <2m3 | <4m3 |
| Element terminal voltage | 3V DC | 3V DC | 3V DC |
| Power consumption (W) | 3 | 4 | 8 |
| Dimensions (mm) | 130 x 111 x 30 | 150 X 138 x 30 | 185 x 168 x 30 |
| Weight (kg) | 0.4 | 0.5 | 0.7 |
| Operating temperature | -10 to +50C | -10 to +50C | -10 to +50C |
| See notes below * |
Notes
*1 The initial value at the temperature of 30°C and humidity of 60%. (The dehumidifying capacity of the membranes will degrade over time depending on the operating environment
*2 The applicable volume is for a sealed, moisture-impermeable container, and may vary depending on the material of the container, state of sealing and required humidity.
*3 The annual average power consumption in average conditions in Japan.
